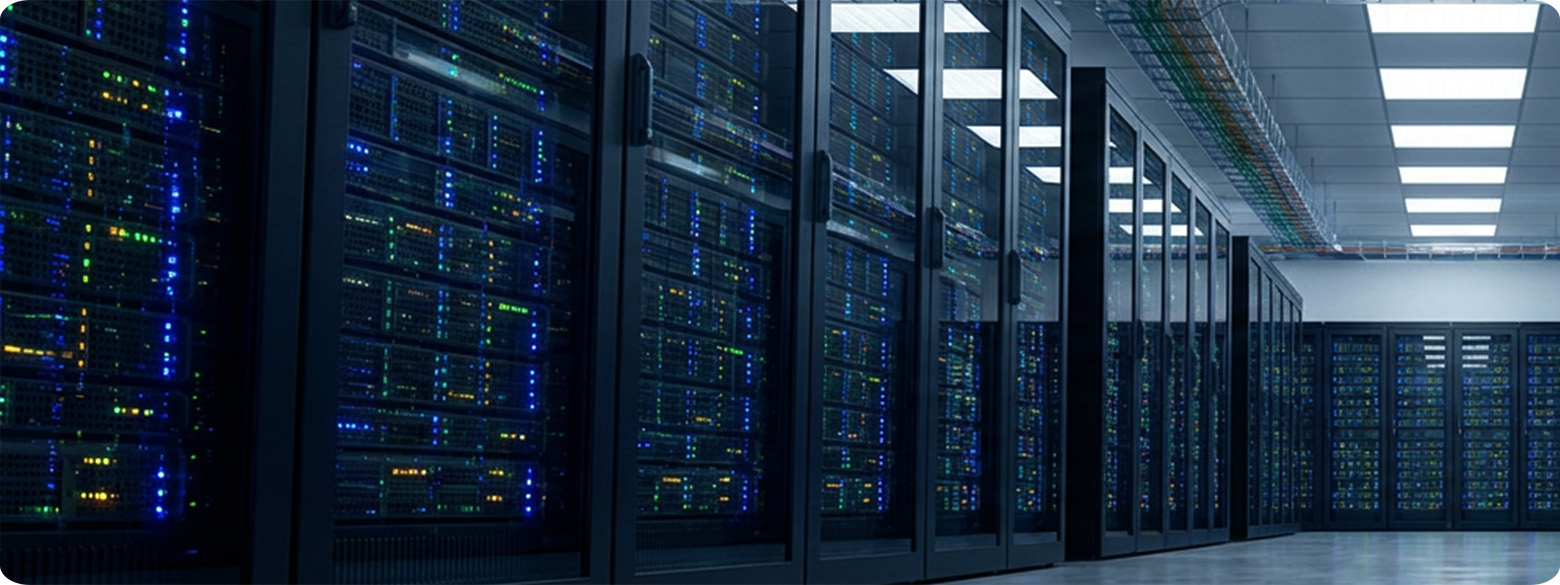

V. Data Center Network Solution
2
Esports Internet Cafe Network Solution
2
Hotel Full Wireless Network Solution
2
Medium-Sized Enterprise Network Solution
PRODUCTS

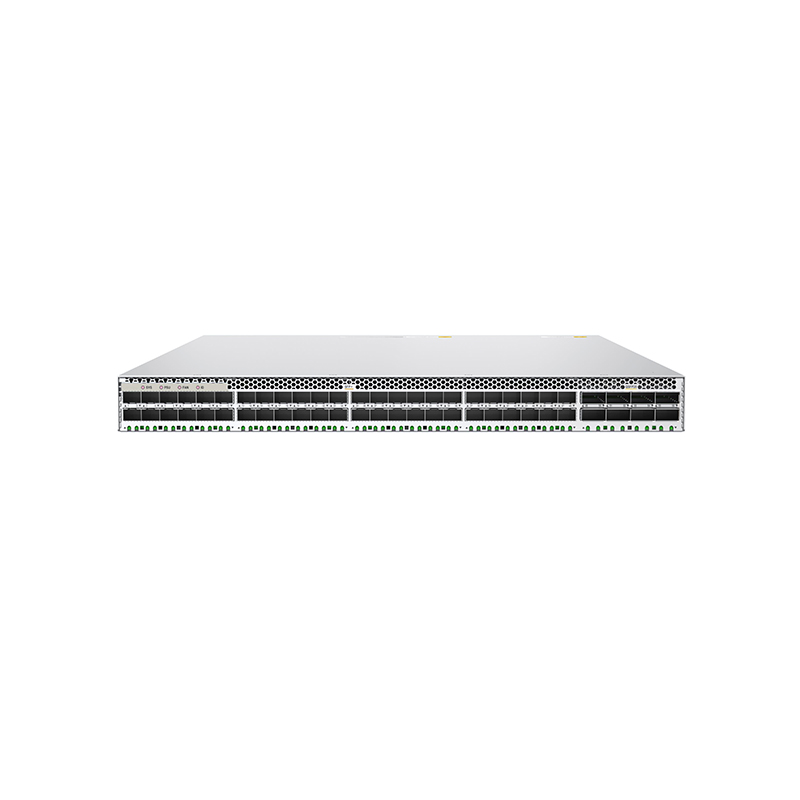

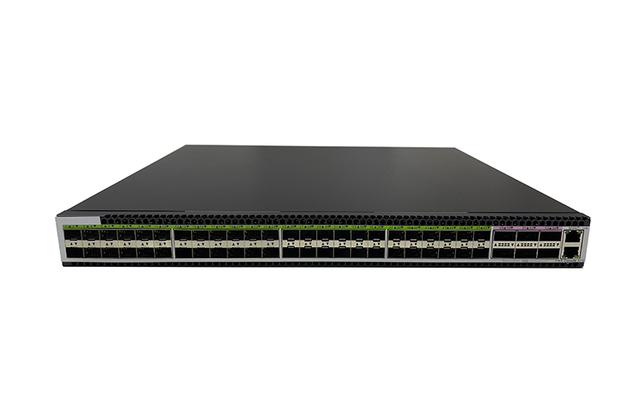

S6000-48XF8CQ
Switching capacity: 1.28Tbps (unidirectional) / 2.56Tbps (bidirectional)
Forwarding capacity: 1920 Mpps
Dimensions (L×W×H): 442mm×550mm×44mm
Weight: ≤10kg
Console port: 1 RJ45 console
Management port: 1 Gigabit management network port
USB port: 1 USB2.0 port
Maximum ports: 4810G SFP ports + 8100G SFP ports
Input voltage: AC: 90-264Vac, 50/60Hz; DC: 190-310Vdc
Static Power Draw: <200W
Max Power Draw: <550W
Operating temperature: 0~40℃
Operating humidity (non-condensing): 5%~95%RH (no condensation)
View More

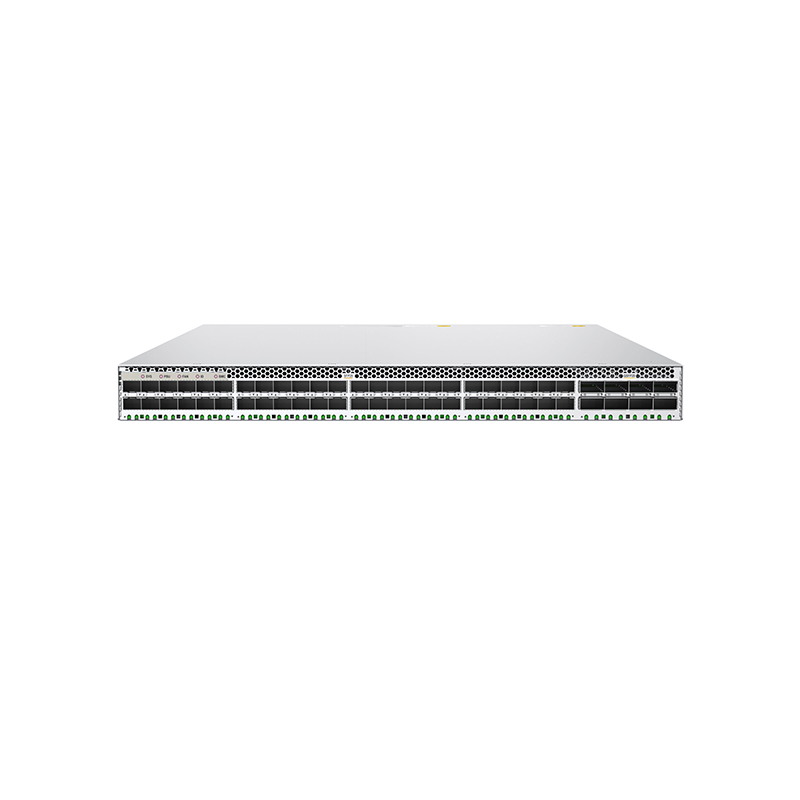

S6000-48SF-8CQ
Switching capacity: 4.0 Tbps
Forwarding capacity: 3000 Mpps
Dimensions (L×W×H): 442mm×550mm×44mm
Weight: <12kg
Console port: 1 RJ45
Management port: 1
USB port: 1
Maximum ports: 4825G SFP28 + 8100G QSFP28
Input voltage: AC: 100-264Vac, 50-60Hz; DC: 190-310Vdc
Static Power Draw: <160W
Max Power Draw: <550W
Hot-plug power supply: 2(1+1 redundancy)
Hot-plug fans: 5(n+1 redundancy)
Operating temperature: 0~40℃
Operating humidity (non-condensing): 5%~95%
View More
S6000-48CQ8DQ
Switching capacity: 16.0 Tbps
Forwarding capacity: 12000 Mpps
Dimensions (L×W×H): 442mm×550mm×44mm
Weight: <12kg
Console port: 1 RJ45
Management port: 1
USB port: 1
Maximum ports: 48100G DSFP + 8400G QSFP-DD
Input voltage: AC: 100-264Vac, 50-60Hz; DC: 190-310Vdc
Static Power Draw: <250W
Max Power Draw: <1300W
Hot plug power supply: 2(1+1 redundancy)
Hot plug fan: 6(n+1 redundancy)
Operating temperature: 0~40℃
Operating humidity (non-condensing): 5%~95%
View More

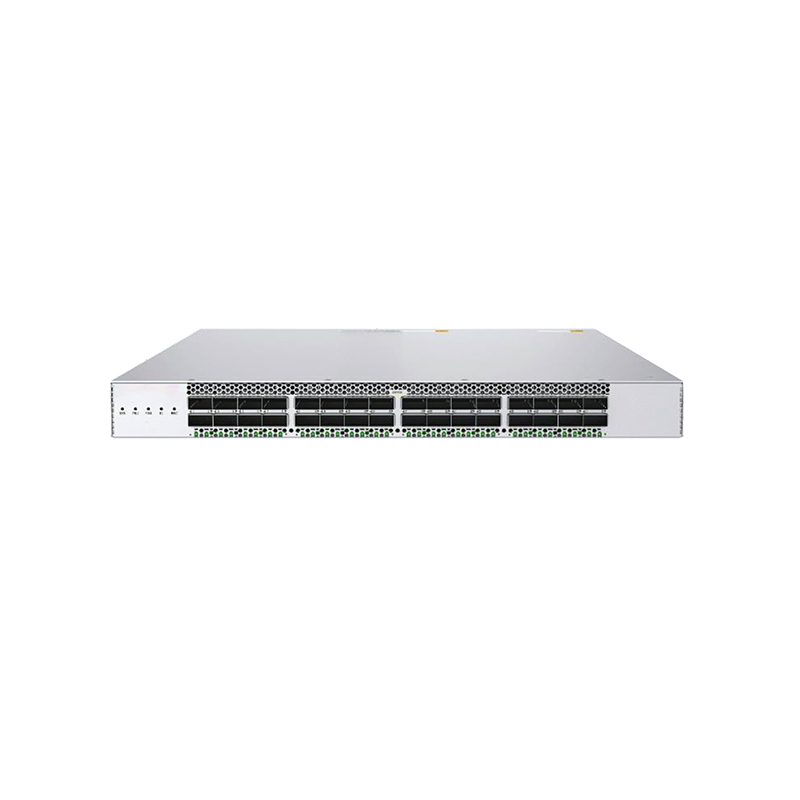

S6000-32CQ
Switching capacity: 6.4 Tbps
Forwarding capacity: 4800 Mpps
Dimensions (L×W×H): 442mm×550mm×44mm
Weight: <12kg
Console port: 1 RJ45
Management port: 1
USB port: 1
Maximum ports: 32*100G QSFP28
Input voltage: AC: 100-264Vac, 50-60Hz; DC: 190-310Vdc
Static Power Draw: <160W
Max Power Draw: <550W
Hot plug power supply: 2(1+1 redundancy)
Hot plug fan: 5(n+1 redundancy)
Operating temperature: 0~40℃
Operating humidity (non-condensing): 5%~95%
View More

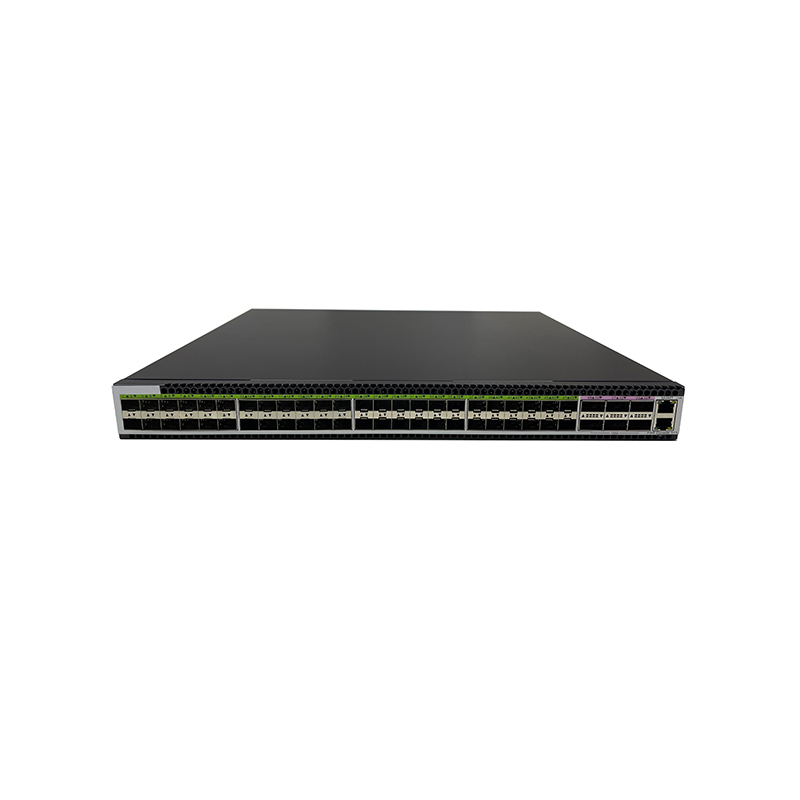

S5500-48XF6CQ
Switching Capacity:216Tbps
Throughput:9642.24Mpps
 MAC Capacity:32K
Flash Memory:256MB
DRAM:4GB
Power Input:AC 100~240VAC, 50/60Hz
 Power Consumption:150W
Dimension:440(W) x 44(H) x 330(D)mm
Weight:3.6kg
FAN:Forced-Air Cooling
View More

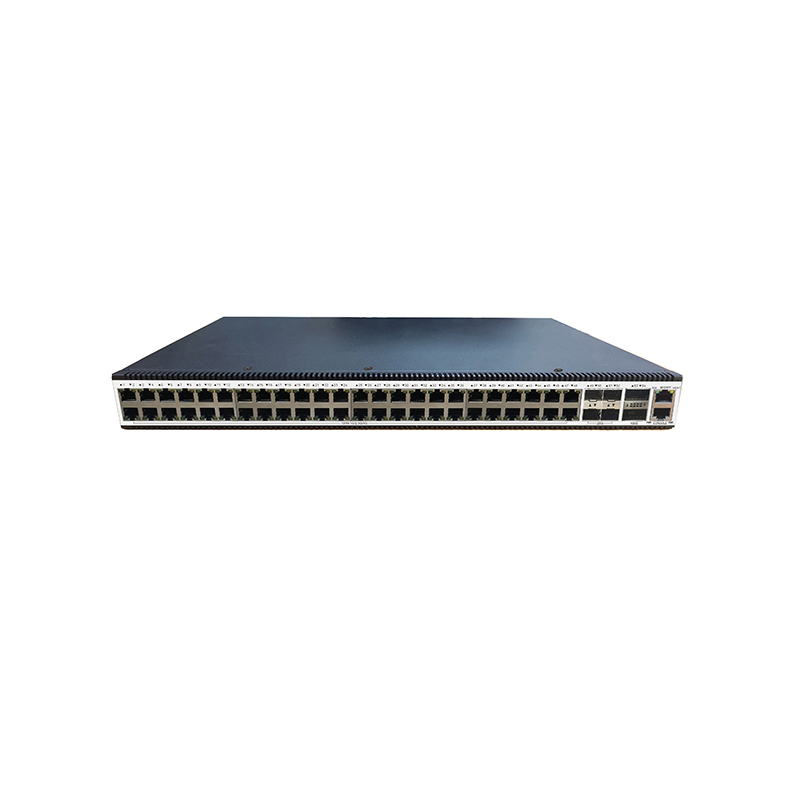

S5500-48MD4SF2CQ
Switching Capacity:1080Gbps
Throughput:803.52Mpps
MAC Capacity:32K
Flash Memory:256Mb
DRAM:4Gb
Power Input:AC 100~240VAC, 50/60Hz
Power Consumption:120W
Dimension:440(W) x 44(H) x 330(D)mm
Weight:6.34kg
Fan:Forced-Air Cooling
View More

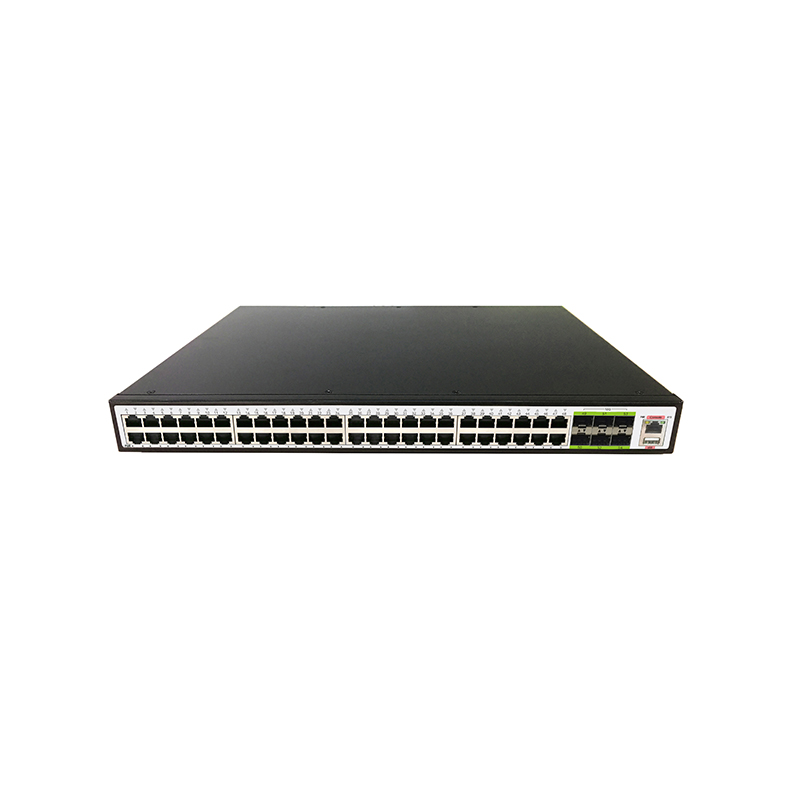

S3000-48G6XF-PoE+
Switching Capacity:216Gbps
Throughput:160.70Mpps
MAC Capacity:32K
Flash Memory:256MB
DRAM:4GB
Power Input:AC 100~240VAC, 50/60Hz
Power Consumption:75W
Dimension:440(W) x 44(H) x 330(D)mm
Weight:4.85kg
FAN:Forced-Air Cooling
View More

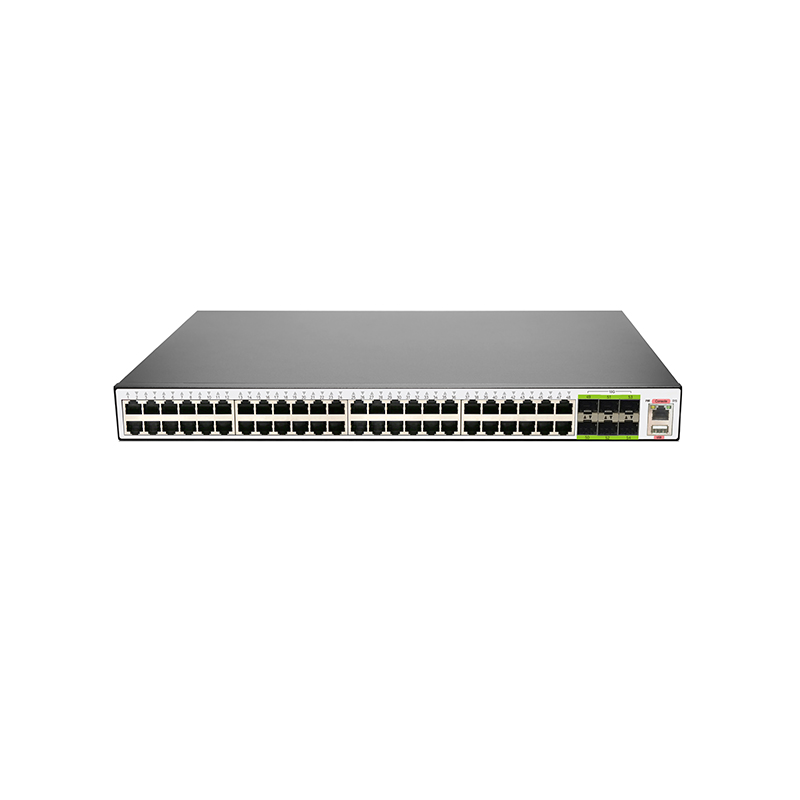

S3000-48G6XF
Switching Capacity: 216Gbps
Throughput: 160.70Mpps
MAC Capacity: 32K
Flash Memory: 256Mb
DRAM: 4Gb
Power Input: AC 100~240VAC, 50/60Hz
Power Consumption: 75W
Dimension: 440(W) x 44(H) x 280(D)mm
Weight:5.84kg
Fan : Forced-Air Cooling

View More
0+
+
11 years of R&D production experience

0+
+

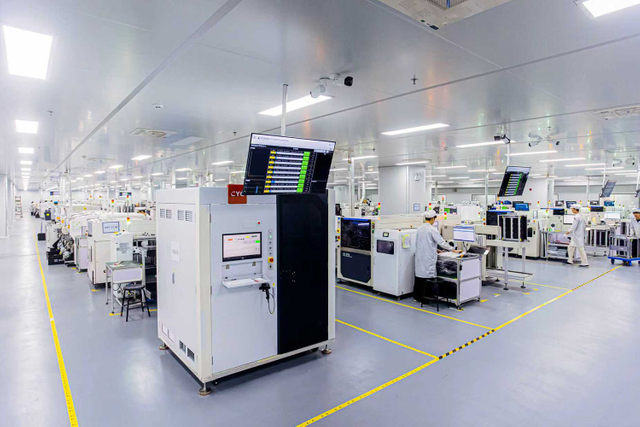

30,000 square meters production base

0+
+
Annual production of 500,000 units

0+
+
Business covers 30+ countries and
regions around the world

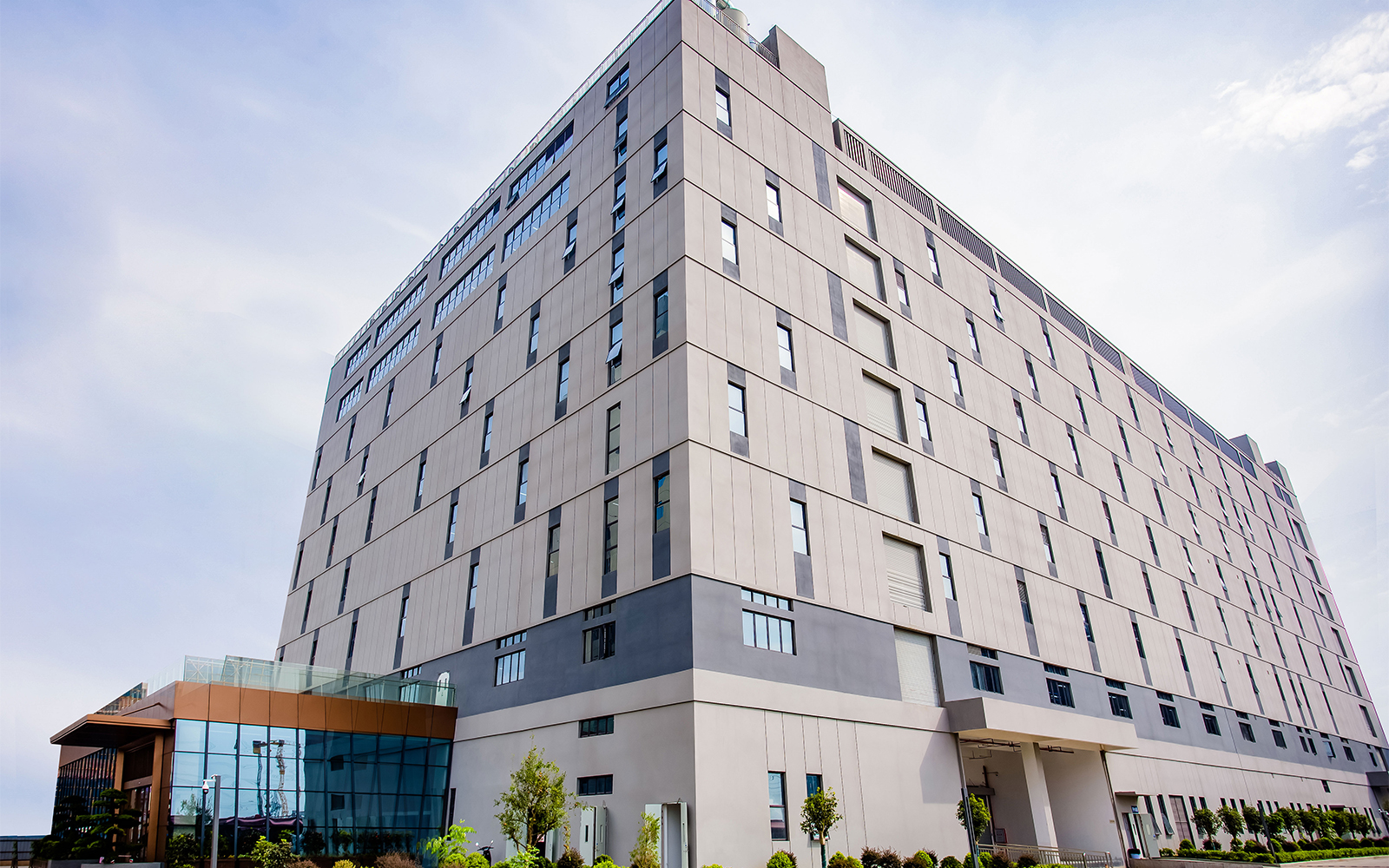

About puduan
SHENZHEN PUDUAN TECH CO.,LTD
Shenzhen Puduan Technology Co., Ltd. is an innovative enterprise dedicated to the R&D and application of network data communication technologies.

Specializing in the design and development of network communication products, we deliver cutting-edge, manageable and scalable network communication solutions tailored to diverse industries.

Boasting a high-caliber R&D and sales team, our core members are veterans hailing from renowned industry players including Huawei, H3C and Fiberhome.
Puduan Products
CUSTOM SOLUTION PROVID
At our company, teamwork and collaboration are highly valued, and we believe in the power of a united and supportive team. We are committed to social responsibility and environmental sustainability, actively participating in initiatives that contribute to the well-being of society and the planet.

We uphold a business philosophy of pragmatism and steady progress, while fostering an agile, efficient and innovative working style to fully satisfy customer needs. We sincerely welcome you to join hands with us for mutually beneficial cooperation.

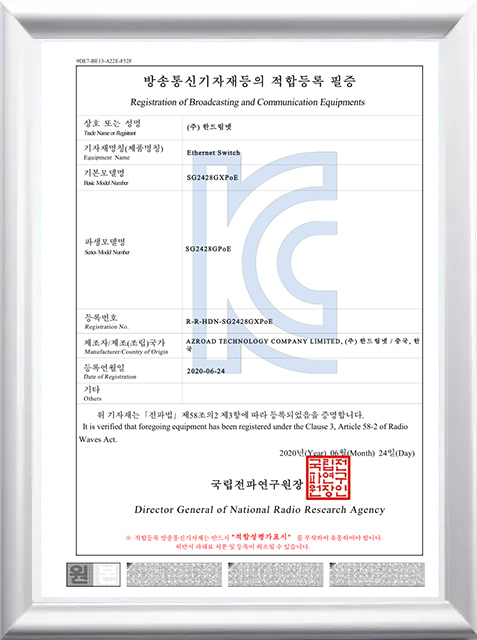

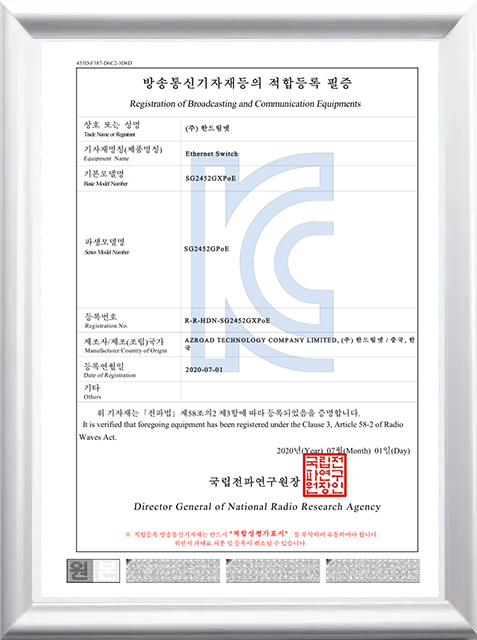

QUALITY CERTIFICATION
Specializing in the design and development of network communication products, we deliver cutting-edge, manageable and scalable network communication solutions tailored to diverse industries.
SERVICES & SUPPORT
Pre-sales:
Provide solutions to propose the best security solutions for the customer's environment

In-sale:
Special person will test before shipment, to provide customers with long-term effective product quality control. And also we provide product technical support and quality support at any time

After-sales:
Provide after-sales solutions, remote guidance and repair for switch problems
News
Solutions
Medium-Sized Enterprise Network Solution

Scenario OverviewFor enterprises with 50-100 users, this solution provides a high-performance and reliable hierarchical network architecture that supports multi-department isolation, video conferencing, internal server access, and other requirements. ## Requirement Analysis- **Number of Terminals

Small Campus Network Solution

Scenario OverviewTargeting primary and secondary schools, training centers, or small vocational school campuses with 100-1000 users, this solution provides a stable, reliable, easy-to-manage, and scalable basic network architecture. It meets the core needs of teaching, office work, security, and ful

V. Data Center Network Solution

Scenario OverviewTargeting enterprise data centers, private clouds, and edge computing scenarios, this solution provides a high-density, high-throughput, and low-latency Spine-Leaf network architecture that supports virtualization, containerization, and AI computing. ## Requirement Analysis- Server
