Esports Internet Cafe Network Solution

## Scenario Overview

Targeting professional esports internet cafes and esports hotel scenarios, this solution provides an ultra-low latency, high-bandwidth, and highly stable network architecture to deliver an extreme gaming experience for players.

## Requirement Analysis

- **Number of Terminals**: 50-200 gaming PCs

- **Bandwidth Requirements**: 5G to the terminal, 10G/25G backbone, and multiple gigabit dedicated gaming lines

- **Key Requirements**: Priority forwarding of game packets (<1ms latency), gaming traffic acceleration, live streaming support, and diskless system optimization

- **Scalability**: Supports the addition of VR gaming zones and live streaming booths

- **Reliability**: 24/7 uninterrupted operation

## Network Architecture Design

Two-Tier High-Performance Architecture (Core + Access):

- 1-2 Core Switches: Each requires 48-port 10G SFP+ + 6-port 25G/100G

- 4-8 Access Switches: Each requires 48-port 5G electrical ports + 2-4-port 100G uplinks

- 1 Gaming Router: Supports multi-WAN load balancing and gaming acceleration

- Gaming Servers: Diskless system, game updates, and Steam caching

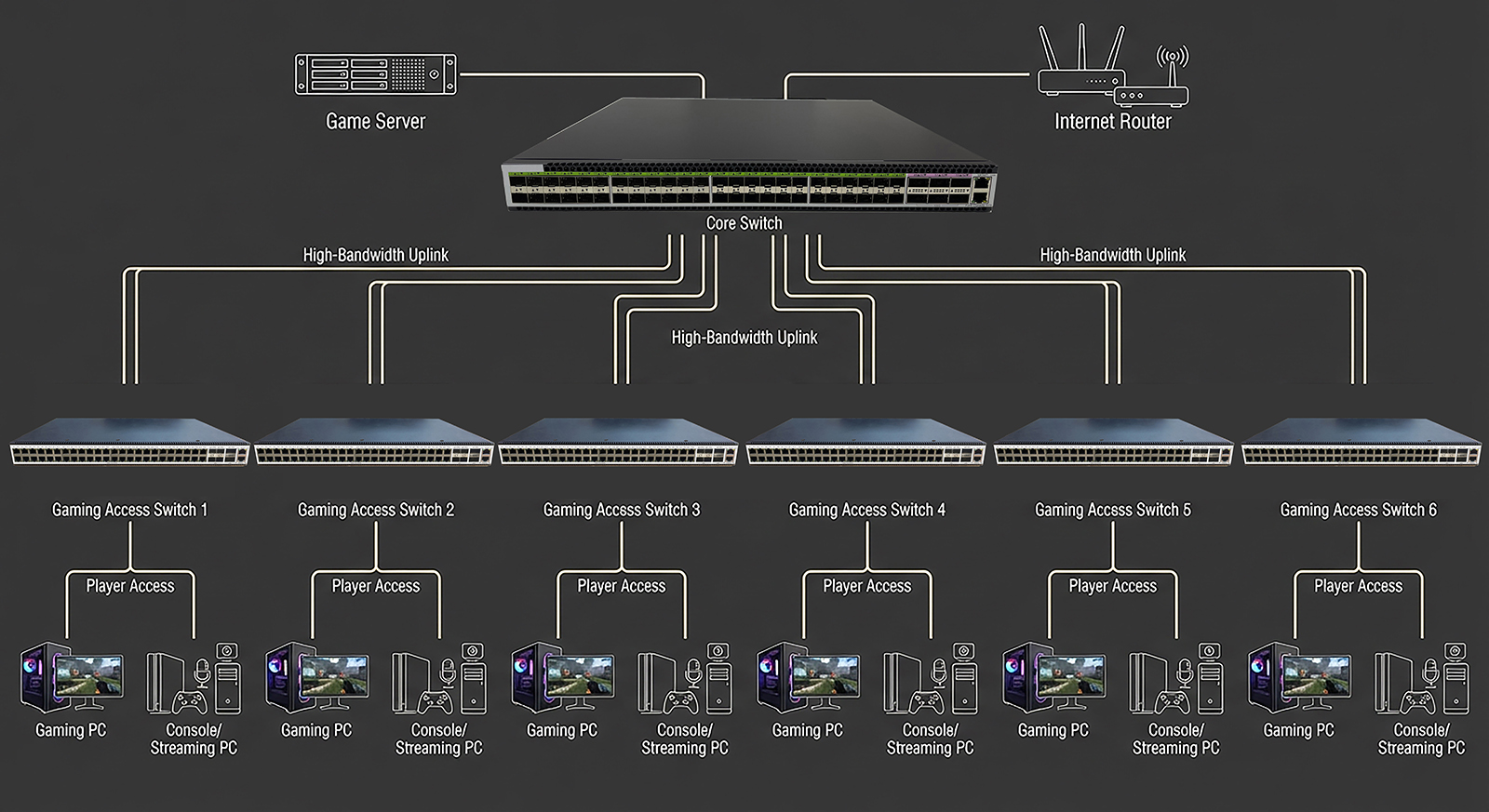

## Topology Diagram

## Recommended Device Specifications

| Model |

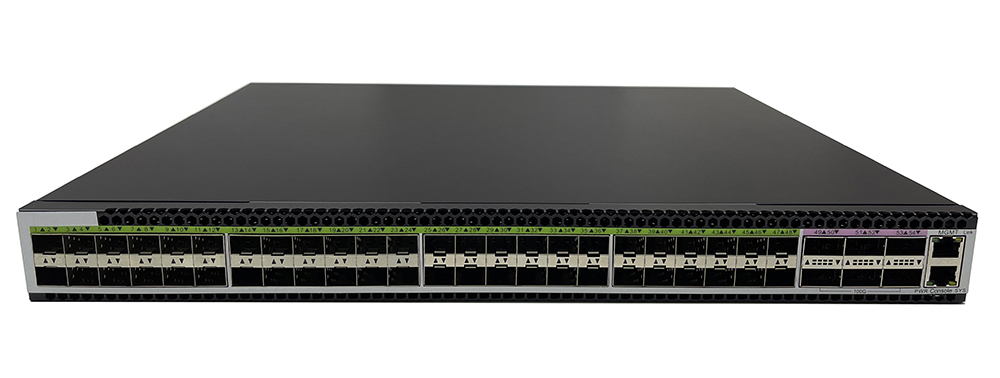

| S5500-48XF6CQ |

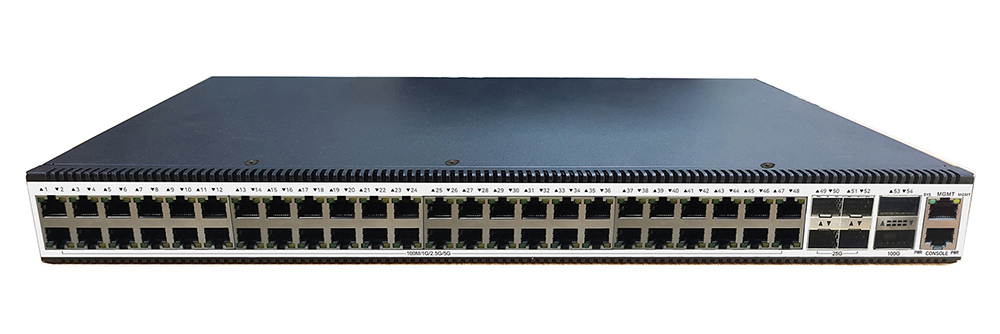

| S5500-48MD4SF2CQ |

## Solution Advantages

- **Ultra-Low Latency**: Dedicated gaming chips enable priority forwarding of game packets, with end-to-end latency <1ms

- **No Bandwidth Bottlenecks**: 5G to the terminal and 10G backbone meet the needs of 4K live streaming

- **Intelligent Acceleration**: Automatically identifies gaming traffic and intelligently selects optimal routes

- **Easy Operation and Maintenance**: Supports remote batch management of gaming PCs and diskless systems
